Home  >  Brands  >  Aspire

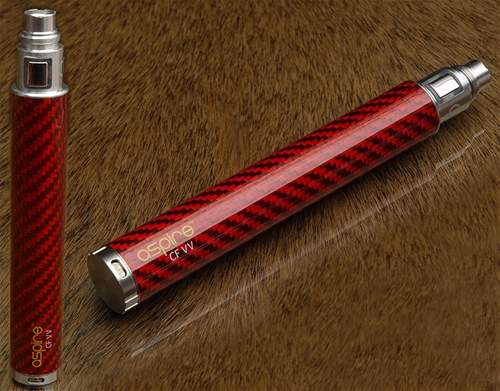

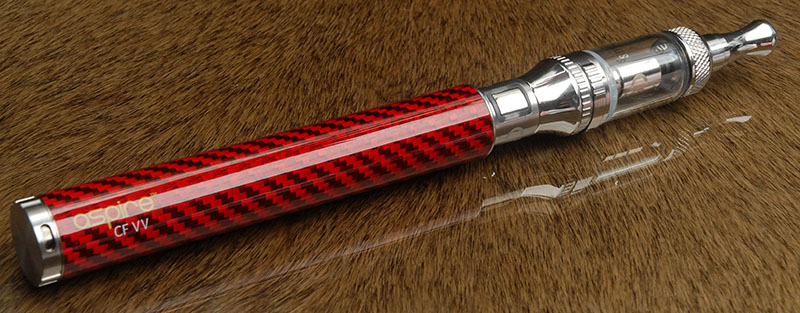

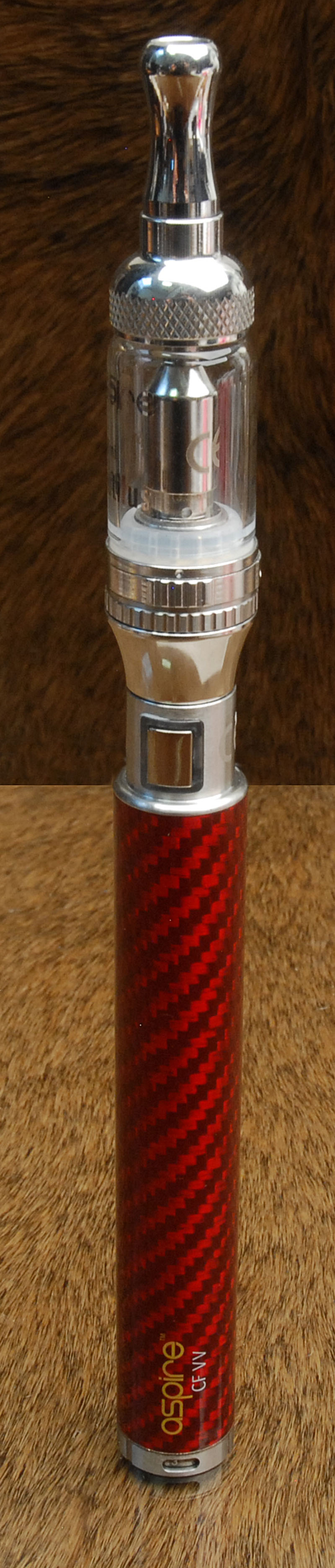

Aspire Carbon Fiber 1600mAh V.V (red)

Aspire Carbon Fiber 1600mAh V.V (red)
  • Aspire Carbon Fiber 1600mAh V.V (red)

click on thumbnail to zoom
Other products by Aspire
Item #: VA01407
Reg. Price: $34.95
Our Price: $19.95
The product is currently out of stock.
Click here to be notified when this item is back in stock and available again for purchase

Description


Spring Connector
Stainless steel
Metal Button

Carbon Fiber Coated Tube

Adjustable Voltage Rotary Knob

SPECIFICATION
Model Name Diameter Capacity Size 1 Size 2 Size 3 Output Voltage
CF VV φ14.8mm 650mah 10.5mm 13mm 82mm 3.3-4.8V
900mah 10.5mm 13mm 97 mm 3.3-4.8V
1100mah 10.5mm 13mm 107mm 3.3-4.8V
φ17.4mm 1000mah 10.5mm 13mm 82mm 3.3-4.8V
1300mah 10.5mm 13mm 97 mm 3.3-4.8V
1600man 10.5mm 13mm 107mm 3.3-4.8V

CF Battery Technical Specification (For VV)
Status procedure Description
Using Turn ON/OFF Press button 5 times in succession in 2 seconds. The LED will blink 3 times (both blue and orange lights) and the button will illuminate Blue when active and ON.
Repeat this procedure to turn battery OFF.
Usage Press the LED button and inhale at the same time
LED Light Indicator Blue LED light will display for battery cell voltage of 3.5-4.2V. The Orange LED indicates a voltage less than 3.5V.
Output Voltage 4.2V full power output
Special Characteristic of VV Stepless variation in 3.3V-4.8V output variable voltage.
Rotate the rotary knob at the bottom of the battery to deliver the optimal voltage for vaping needs
Charging Available Capacity 650mah, 900mah, 1100mah, 1000mah, 1300mah and 1600mah 3.7V rechargeable
Low Battery Indication The battery Orange indicator light blinks 15 times.
Charger Specification 4.2V output, 500mah
Complete Battery Charge Time 2-5 hours
Charging Instructions: 1.Unscrew the battery from the vaping components.
2.Gently screw battery into the USB charger.
3.Plug the USB into the supplied wall charger or computer.
4.The battery will flash 3 times and then turn solid in color (Orange light in 3.2-3.5V, Blue light in 3.5-4.15V).
5.The light on the USB charger will be red when charging.
6.Once fully charged, the USB charger will display a green light, and the LED light on battery will turn off.
Protection function Overcharge Protection When battery is overcharged (voltage beyond 4.25V), the built-in microchip will automatically stop battery charging.
Overdischarge Protection When battery cell voltage is less than 3.2V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.
Atomizer Short Circuit Protection If heating coils are short-circuited while vaping, the LED lights (both colors) blink 3 times, and the battery will default to “sleep mode.”
Charging Short Circuit Protection If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights (both colors) will flash 6 times.
Lock and Unlock Function To lock the battery, press the button 5 times in succession in 2 seconds. The LED lights (both colors) will flash 3 times. Repeat this procedure or recharge to unlock.
Caution Battery Care Always charge the battery completely before using.
Do not store battery in a hot or humid environment.
Do not drop or puncture battery.
Do not force battery connection to other attachments.
Warning Do not charge the CF battery on another charger - it may damage the battery.
Always keep the battery dry and away from moisture.
Do not dismantle or expose the battery compartment- this will result in malfunction.
If the indicator light displays ON continuously or the product becomes hot - immediately disconnect the battery from the cartridge to break the electrical connection.
